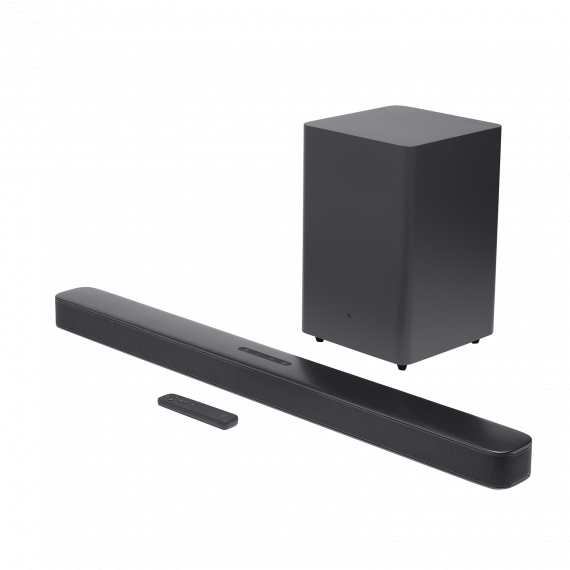

JBL Sound Bar 2.1 Deep Bass
Delivery, Payment & Returns Information
Pay easily with your preferred method
Exchange/return of products of proper quality within 14 days
General Specifications
- Model
- Bar 2.1 Deep Bass CNTR (Soundbar Unit), Bar 2.1 Deep Bass SUB (Subwoofer Unit)
- Power supply
- 100 - 240V AC, ~ 50/60Hz
- Total speaker power output (Max. @THD 1%)
- 300W
- Output power (Max. @THD 1%):
- 2 x 50W (Soundbar); 200W (Subwoofer)
- Transducer
- 4 x race track drivers + 2 x 1” tweeter (Soundbar); 6.5” (Subwoofer)
- Soundbar and Subwoofer standby power
- <0.5W
- Operating temperature
- 0°C - 45°C
- HDMI Video output (With Audio return channel)
- 1
- HDMI version
- 1.4
Audio Specifications
- HDMI Video input
- 1
- Frequency response
- 40Hz - 20KHz
- Audio inputs
- 1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)
Dimensions
- Dimensions (W x H x D):
- 965 x 58 x 85 (mm) / 38” x 2.28” x 3.35” (Soundbar);
- 240 x 240 x 379 (mm) / 8.9” x 8.9” x 14.6” (Subwoofer)
- Weight
- 2.16 kg (Soundbar);
- 5.67 kg (Subwoofer)
- Packaging dimensions (W x H x D)
- 1045 x 310 x 405mm
- Packaging weight (Gross weight)
- 10.4kg
Control and Connection Specifications
- USB port
- Type A
- USB rating
- 5V DC/ 0.5A
- Supporting file format
- mp3, wav
- MP3 Codec
- MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
- MP3 sampling rate
- 16KHz - 48 KHz
- MP3 bitrate
- 80kbps - 320kbps
- WAV sample rate
- 16KHz - 48 KHz
- WAV bitrate
- Up to 3000kbps
- Bluetooth version
- 4.2
- Bluetooth profile
- A2DP V1.3, AVRCP V1.5
- Bluetooth frequency range
- 2402MHz-2480MHz
- Bluetooth Max. transmitting power
- <10dBm (EIRP)
- Modulation Type
- GFSK, π/4 DQPSK, 8DPSK
- 5G Wireless frequency range
- 5736.35 - 5820.35MHz
- 5G Max. transmitting power
- <9dBm (EIRP)
- Modulation Type
- π/4 DQPSK
