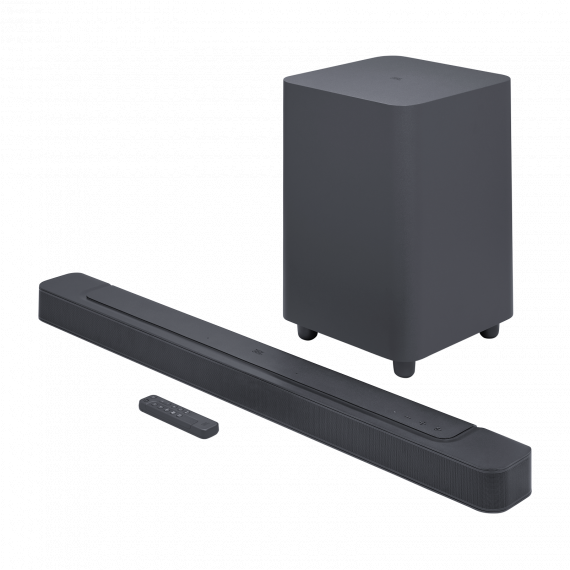

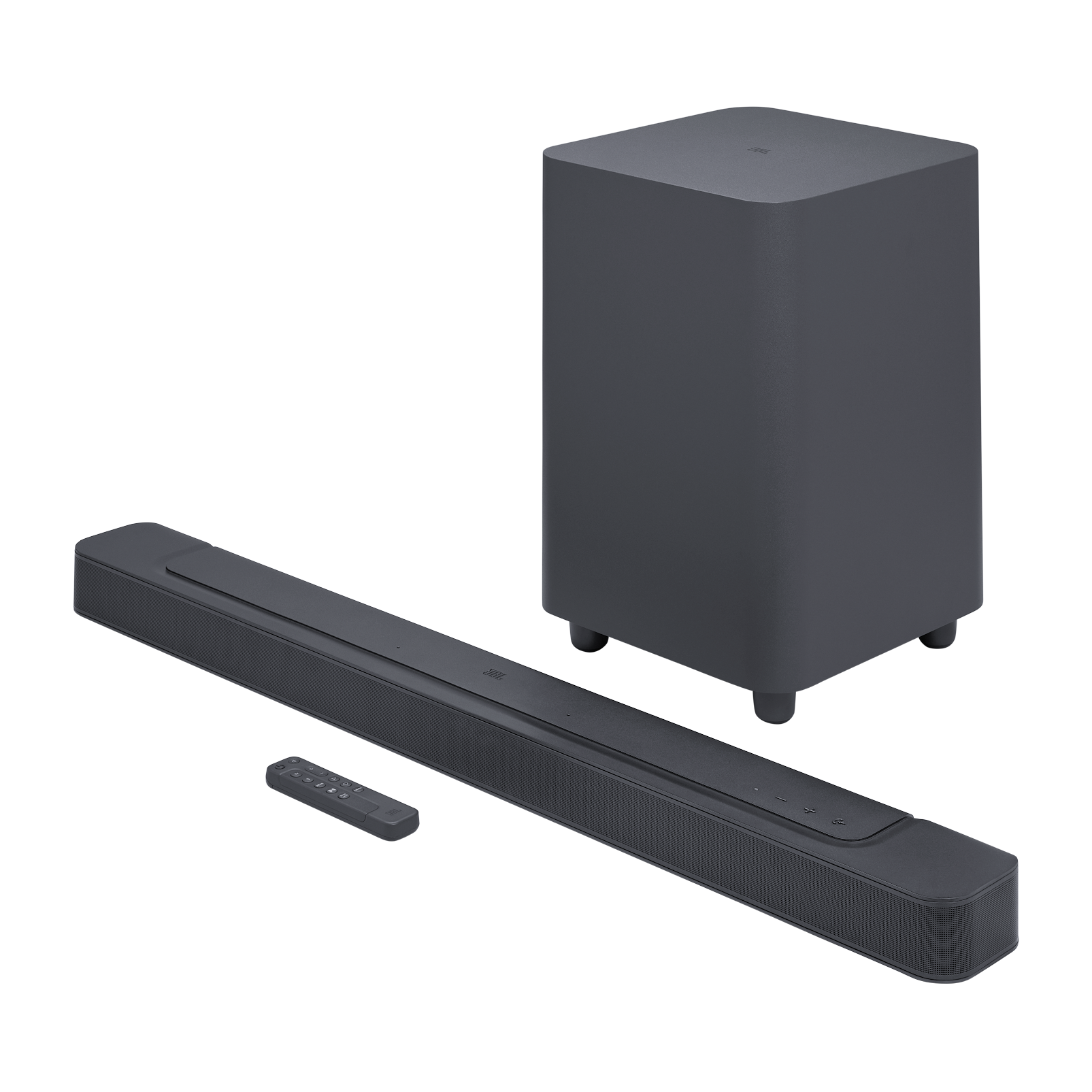

JBL Sound Bar Bar500
Delivery, Payment & Returns Information
Pay easily with your preferred method
Exchange/return of products of proper quality within 14 days
General Specifications
- Power supply
- 100 - 240V AC, ~ 50/60Hz
- Networked standby power
- < 2.0 W
- Operating temperature
- 0°C - 45 °C
Audio Specifications
- Total speaker power output (Max @THD 1%)
- 590W
- Soundbar output power (Max @THD 1%)
- 290W
- Subwoofer output power (Max. @THD 1%)
- 300 W
- Soundbar transducer
- 4x (46x90)mm racetrack drivers, 3x 0.75" (20mm) tweeters
- Subwoofer transducer
- 10” (260mm)
- Frequency response
- 35Hz - 20kHz (-6dB)
- Audio inputs
- 1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)
Dimensions
- Soundbar dimensions (W x H x D)
- 1017 x 56 x 103.5 mm / 40’’ x 2.2’’ x 4’’
- Subwoofer dimensions (W x H x D)
- 305 x 440.4 x 305 mm / 12" x 17.3" x 12"
- Soundbar weight
- 2.8kg/ 6.2 lbs
- Subwoofer weight
- 10 kg / 22 lbs
- Packaging dimensions (W x H x D)
- 1105 x 370 x 475 mm/ 43.5" x 14.6" x 18.7"
- Packaging Weight
- 16.2 kg / 35.6 lbs
Control and Connection Specifications
- USB port
- Type A
- USB rating
- 5V DC, 0.5A
- Supporting file format
- MP3
- MP3 codec
- MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
- MP3 sampling rate
- 16 - 48 kHz
- MP3 bitrate
- 80 - 320 kpbs
- Bluetooth version
- 5.0
- Bluetooth profile
- A2DP 1.2, AVRCP 1.5
- Bluetooth transmitter frequency range
- 2400 MHz – 2483.5 MHz
- Bluetooth transmitter power
- <15 dBm (EIRP)
- Wi-Fi network
- IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
- 2.4G Wi-Fi transmitter frequency range
- 2412 - 2472 MHz (2.4 GHz ISM Band, USA 11 Channels, Europe and others 13 Channels)
- 2.4G Wi-Fi transmitter power
- < 20 dBm (EIRP)
- 5G Wi-Fi transmitter frequency range
- 5.15 - 5.35GHz, 5.470-5.725GHz, 5.725 - 5.825GHz
- 5G Wi-Fi transmitter power
- 5.15-5.25GHz <23dBm, 5.25-5.35GHz & 5.47-5.725GHz <20dBm, 5.725-5.825GHz <14dBm (EIRP)
- 2.4G wireless transmitter frequency range
- 2406 - 2474MH
- 2.4G wireless transmitter power
- ＜10dBm (EIRP）
Video Specifications
- HDMI video input
- 1
- HDMI video output (with Enhanced Audio Return Channel, eARC)
- 1
- HDMI HDCP version
- 2.3
- HDR pass through
- HDR10, Dolby Vision
