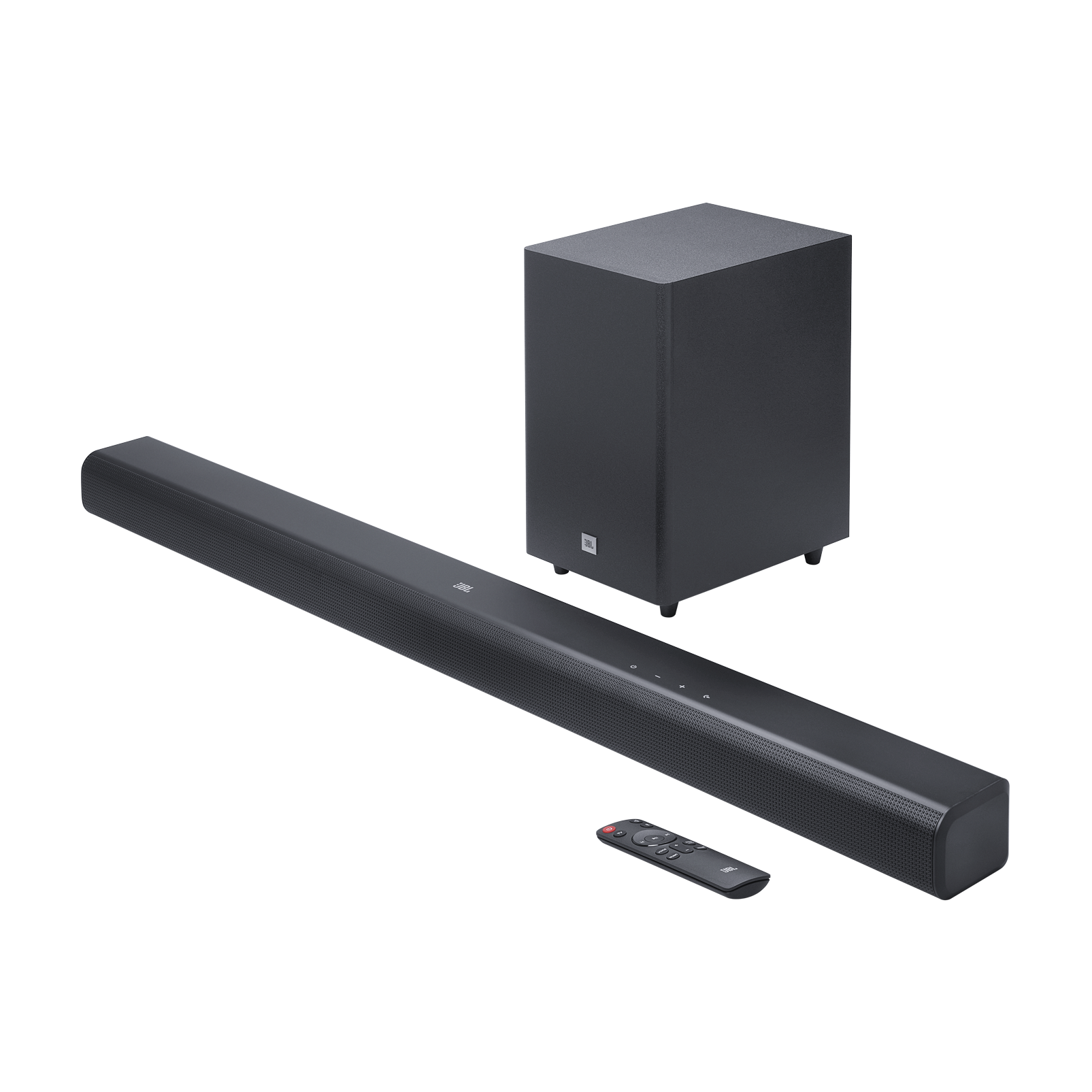

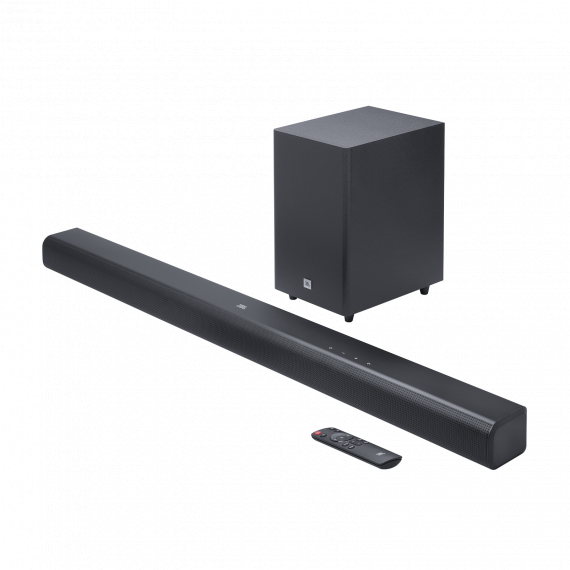

JBL Sound Bar SB550
Delivery, Payment & Returns Information
Pay easily with your preferred method
Exchange/return of products of proper quality within 14 days
General Specifications
- Model
- CINEMA SB550
- Sound system
- 3.1 channel
- Power supply
- 100 - 240V AC, ~ 50/60Hz
- Total speaker power output (Max @THD 1%)
- 250W
- Soundbar output power (Max @THD 1%)
- 150W
- Subwoofer output power (Max. @THD 1%)
- 100W
- Soundbar transducer
- 3x (45 x 100) mm racetrack drivers + 2x 13mm tweeters
- Subwoofer transducer
- 5.25” (133 mm), wireless subwoofer
- Standby power
- < 0.5 W
- Operating temperature
- 0°C - 45 °C
Audio Specifications
- Frequency response
- 45Hz-20kHz (-10dB)
- Audio inputs
- 1 Optical, Bluetooth and USB (USB playback is available in US version. For other versions, USB is for Service only.)
Dimensions
- Soundbar dimensions (W x H x D)
- 950 x 64 x 80 mm / 37.4’’ x 2.5’’ x 3.1’’
- Subwoofer dimensions (W x H x D)
- 200 x 324 x 250 mm / 7.9" x 12.8" x 9.9"
- Soundbar weight
- 2.5kg / 5.5 lbs
- Subwoofer weight
- 4.2 kg / 9.3 lbs
- Packaging dimensions (W x H x D)
- 1025 x 235 x 397 mm / 40.4" x 9.3" x 15.6"
- Packaging Weight
- 8.8kg / 19.4 lbs
Control and Connection Specifications
- USB port
- Type A
- USB rating
- 5V DC, 0.5A
- Supporting file formats
- mp3
- MP3 codec
- MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
- MP3 sampling rate
- 16 - 48 kHz
- Bluetooth version
- 5.3
- Bluetooth profile
- A2DP 1.3, AVRCP 1.6
- Bluetooth transmitter frequency range
- 2400 MHz – 2483.5 MHz
- Bluetooth Max. transmitting power
- <10 dBm (EIRP)
- Bluetooth modulation
- GFSK, π/4 DQPSK, 8DPSK
- 2.4G wireless transmitter frequency range
- 2402-2481 MHz
- 2.4G wireless transmitter power
- ＜10dBm (EIRP）
- 2.4G wireless modulation
- GFSK
Video Specifications
- HDMI ARC (Audio Return Channel)
- 1
- HDMI HDCP version
- 1.4
